Informações do Produto
HIKVISION CAMERA IP BULLET DS-2CD1643G0-IZ 4MP 2.8-12MM| Excell Informática

Verifique a disponibilidade com seu vendedor

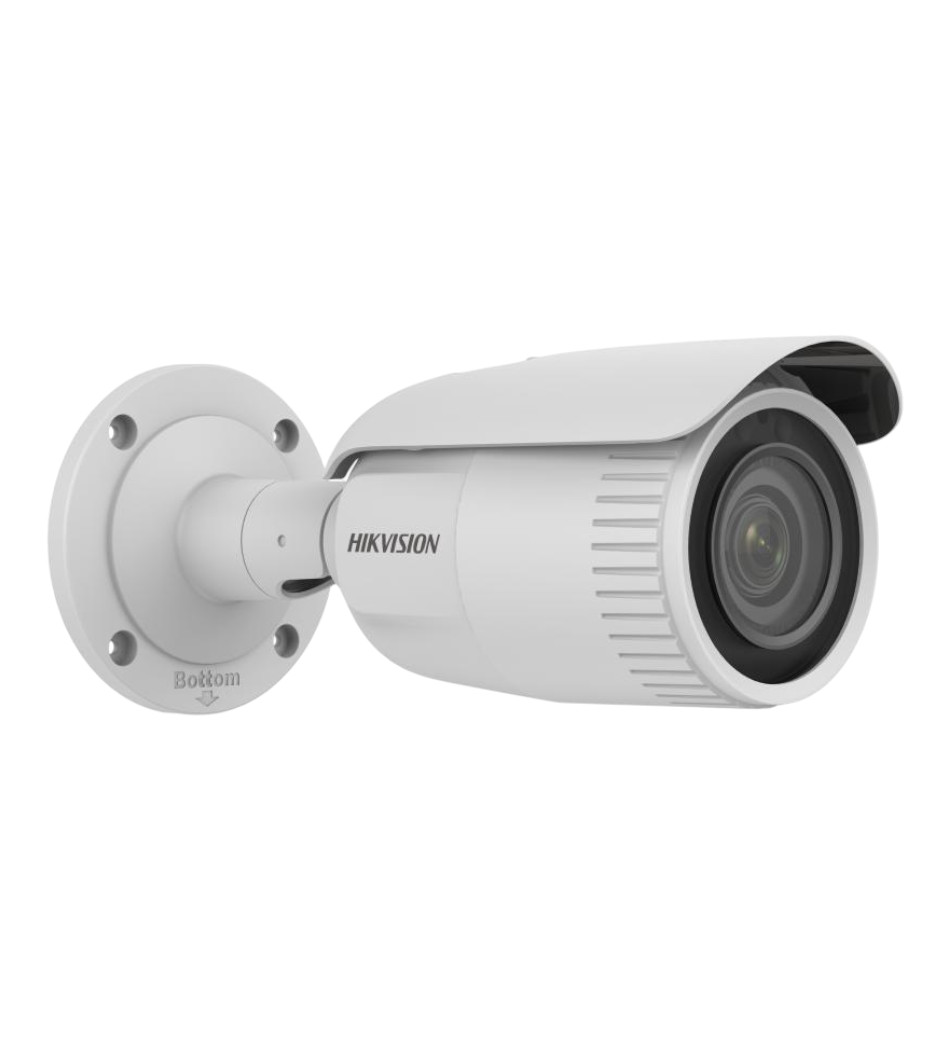

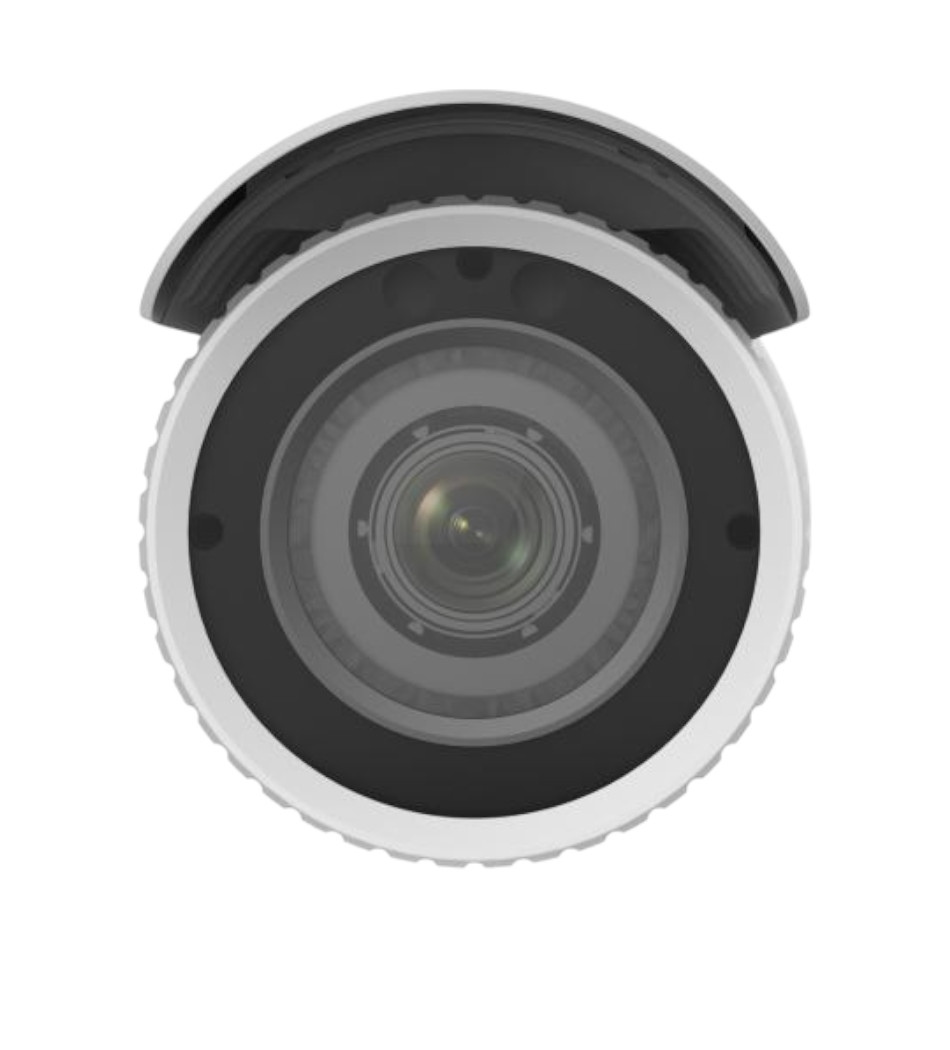

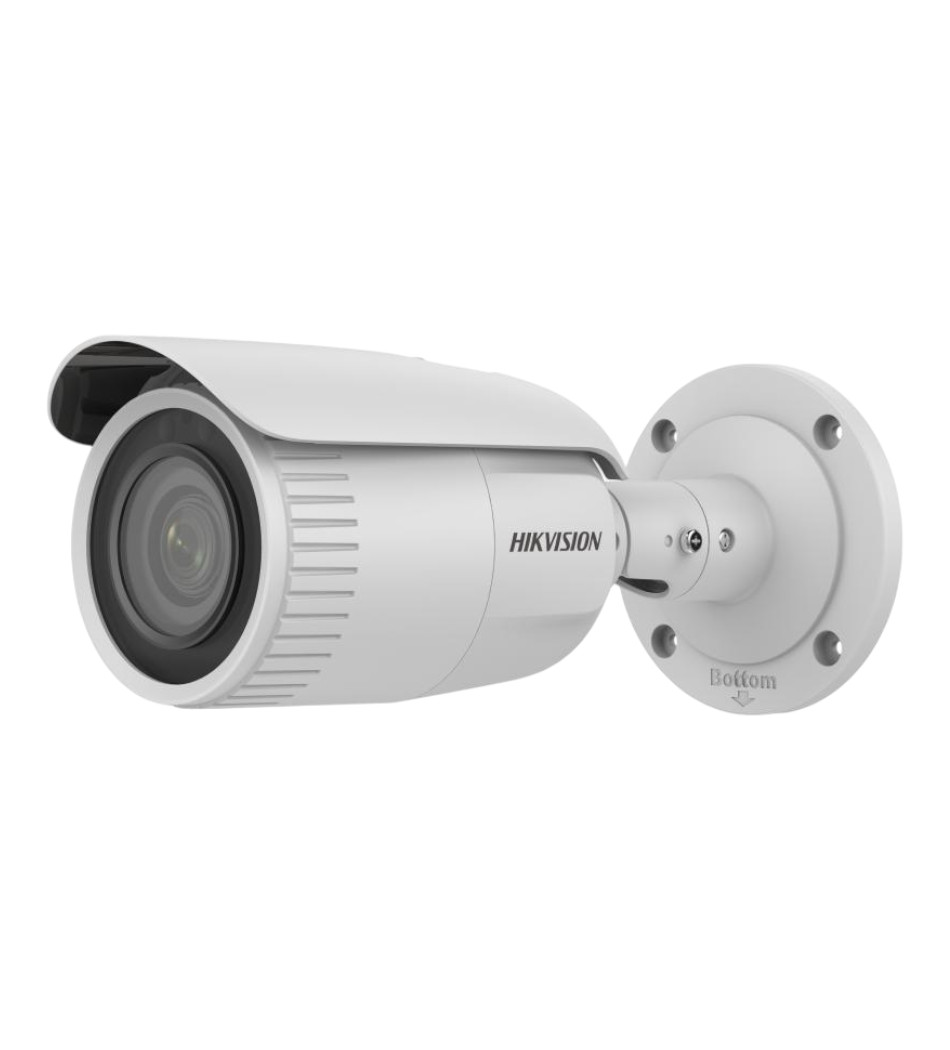

  HIKVISION CAMERA IP BULLET DS-2CD1643G0-IZ 4MP 2.8-12MM
Código: 6819
clique na imagem para ampliar
u$ 88,00

DS-2CD1643G0-IZ



Câmera de rede varifocal de 4 MP



IMPORTANTE: Atualização de segurança das câmeras Hikvison.
Baixe o firmware aqui ou saiba mais







Características Principais



  • Imagens de alta qualidade com resolução de 4 MP
  • Eficiente tecnologia de compressão H.265 +
  • Imagem nítida, mesmo com forte iluminação de fundo devido a 120 dB WDR
  • Slot para cartão SD de até 256 GB para armazenamento
  • Lente varifocal motorizada de 2,8 a 12 mm para fácil instalação e monitoramento
  • Resistente à água e poeira (IP67)
  • EXIR 2.0: tecnologia infravermelha avançada com longo alcance infravermelho





Especificações



Camera
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Wide Dynamic Range 120 dB
Day & Night


Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360°
Lens
Lens Type


Focal Length & FOV 2.8 to 12 mm: horizontal FOV 102° to 31°, vertical FOV 55° to 18°, diagonal FOV 122° to 36°
Lens Mount


Iris Type Fixed
Aperture F1.6
Illuminator
IR Wavelength 850 nm
IR Range


Video
Main Stream 30 fps (2304 × 1296, 1920 × 1080, 1280 × 720)


Sub-Stream 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)


Video Compression Sub-stream: H.265/H.264/MJPEG


Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Region of Interest (ROI) 1 fixed region for main stream
Audio
Audio Compression -S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate -S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
Audio Sampling Rate -S: 8 kHz/16 kHz
Environment Noise Filtering -S: Yes
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live View Up to 6 channels
API Open Network Video Interface, ISAPI
User/Host Up to 32 users. 3 levels: administrator, operator and user
Client iVMS-4200, Hik-Connect
Web Browser Local service: Chrome 57.0+, Firefox 52.0+


Image Settings Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch


Image Enhancement BLC, 3D DNR
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD card, up to 256 GB
Audio 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium


Alarm


Reset Key Yes
Event
Basic Event Motion detection, video tampering alarm, exception
Linkage Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture
General
Power PoE: 802.3af, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W


Camera Material Metal
Camera Dimension Ø105 mm × 244.4 mm (Ø4.1" × 9.6")
Package Dimension 315 mm × 137 mm × 141 mm (12.4" × 5.4" × 5.6")
Camera Weight Approx. 1035 g (2.3 lb.)
With Package Weight Approx. 1550 g (3.4 lb.)
Storage Conditions -30 °C to 60 °C (22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language


General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Approval
EMC KC (KN 32: 2015, KN 35: 2015)


Safety BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)


Environment Reach (Regulation (EC) No 1907/2006)


Electrical Safety Protection IP67 (IEC 60529-2013)





Arquivos



Datasheet (PDF, inglês, link externo)
Guia Rápido (PDF, inglês, link externo)
Manual (PDF, inglês, link externo)



ATENÇÃO: Não fazemos entregas no Brasil. Retirar na loja.
